DataStream Updates

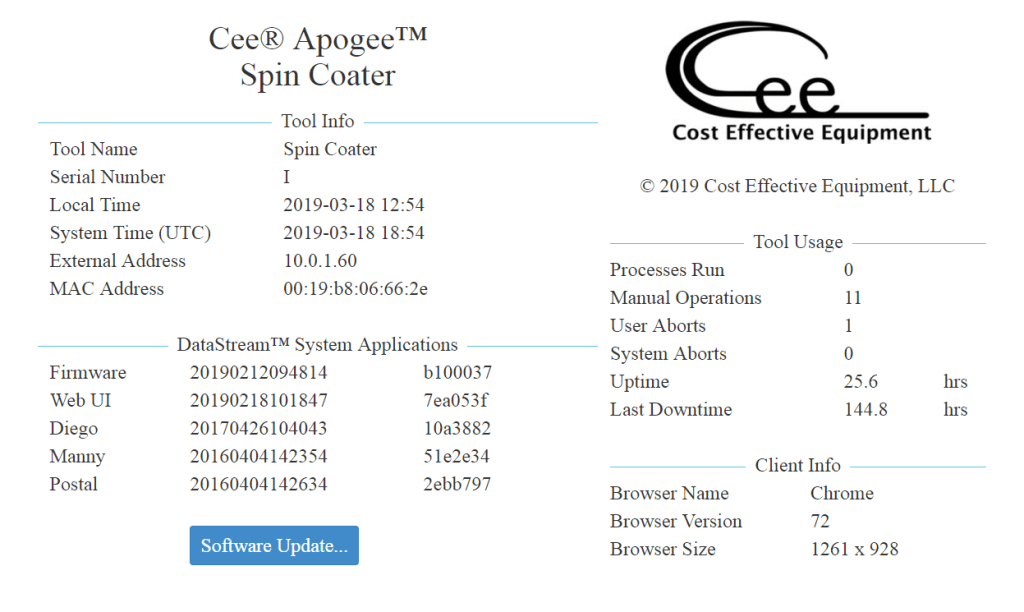

The About page provides information regarding your equipment’s software version. Details can be found in the bottom left-hand corner under DataStream™ System Applications. DataStream™ v6 features updated versioning nomenclature for simplified tracking of software compatibility. An update is recommended if your Apogee™ equipment displays Firmware version(s) older than v6.9.0.

Before beginning the installation, please click the black button below to review our DataStream™ v6 Update Checklist. Click the grey button below to watch a video tutorial on how to administer the update.

Screenshot of DataStream® v6.8 About page.

DataStream™ v6.9 Update

Application Versions:

Download DataStream™ v6.9 Update
DataStream™ v6 Update Checklist
DataStream™ v6 Update Tutorial
DataStream™ v6.9 Manual
  • Firmware – v6.9.0
  • Diego – v6.8.0
  • Postal – v6.0.0
  • Web UI – v6.9.0
  • Manny – v6.0.0

What’s New:

  • Updated pressure unit of measurement from cubic feet per minute (CFM) to cubic meters per hour (CMH).
  • Accommodation for new Cee® accessories including:
    • AccuScan™ Dispense
    • OptiFlow™ Exhaust Control System
    • Heated In-Line Dispense

Spin Coaters

  • Exhaust sensor calibration setting to offset ambient pressure readings.

Past Updates

DataStream™ v6.8 Update

Application Versions:

Download DataStream™ v6.8 Update
DataStream™ v6.8 Manual
  • Firmware – v6.8.0
  • Diego – v6.8.0
  • Postal – v6.0.0
  • Web UI – v6.8.0
  • Manny – v6.0.0

What’s New:

  • Enhanced USB recognition for ease of updating.
  • Eliminated touch screen pinch-to-zoom feature.
  • Improvements to recipe logging and format.
  • Resolved discrepancy in ‘time remaining’ for recipes with multiple iterations.
  • Bug resolution: enables recipe backup on boot for machines with older hardware.

Spin Coaters

  • Log enhancements to include max vibration values and total recipe time.
  • Bug resolution: addresses issues with concurrent auto-dispense.

DataStream™ v6.7 Update

Application Versions:

Download DataStream™ v6.7 Update
DataStream™ v6.7 Manual
  • Firmware – v6.7.0
  • Diego – v6.3.0
  • Postal – v6.0.0
  • Web UI – v6.7.0
  • Manny – v6.0.0

What’s New:

  • Improved diagnostics for streamlined troubleshooting.
  • Apogee® branding updates.
  • Default values added to select manual control fields.

Spin Coaters

  • Accommodation for new (optional) features and accessories.
  • Modification to centering step for enhanced user control.
  • Optimized exhaust monitoring capabilities.

Bake Plate

  • All-Motion updates for real-time position feedback.
  • *HMDS-Only* Resolved process delays when using basic recipes.

Mechanical Debonder

  • Improved system reliability and responsiveness.
  • Gripper Position function added to manual control options.
  • Refined force handling for enhanced precision.

DataStream™ v6.4.1 Update

Application Versions:

Download DataStream™ v6.4.1 Update
DataStream™ v6.4.1 Manual
  • Firmware – v6.4.1
  • Diego – v6.3.0
  • Postal – v6.0.0
  • Web UI – v6.4.0
  • Manny – v6.0.0

What’s New:

  • Protect recipe data with backup on boot functionality
  • Improved safeguards to prevent data loss
  • Duplicate recipe warning to avoid unintentional overwrite
  • Capture 60 minutes of graph view and export to csv
  • Expanded and improved process logs
  • Local and remote screen capture capability
  • Simplified version nomenclature v[major].[minor].[patch]
  • End-of Process alarm now featuring ‘silent mode’
  • DataStream™ API for integration, automation, and remote management capabilities

Spin Coaters

  • One-click motor off button in manual controls for instant spin motor shutdown
  • Bug Resolution: eliminate process freeze when servo communication is lost

Bake Plate

  • Configure the lift pin offset for improved calibration
  • Safeguard against operator injury with the optional Safety Watermark
  • Reduce time to temp, conserve energy, and prolong product life with the Idle Temperature setting
  • Timers mode offers basic controls and simple time-keeping functions for R&D applications.

DataStream™ Update 20220620

Application Versions:

Download DataStream Update - 20220620
DataStream™ Manual v20220620
  • Firmware – 20220620153130
  • Diego – 20170426104043
  • Postal – 20160404142634
  • Web UI – 20220620085426
  • Manny – 20160404142354

What’s New:

  • UI enhancements including process view quick links and graph scaling up to 1 hour
  • refined diagnostic interface for ease of troubleshooting
  • added features to manual control dropdown
  • ability to modify system time and date offline
  • USB recipes upload/download
  • improvements memory writing process to prevent corruption of file systems

Spin Coater

  • ability for users to specify dispense names
  • end of process Chuck Home added to settings (0 to disable, 1 to enable)
  • source empty preconditions only verify dispenses included in recipe

Bake Plate

  • lift pin step resolution increased to 0.1mm increments
  • improvement of lift pin function and enhanced error logging

Bonder

  • disable temperature and humidity preconditions
  • separator flag check box added for recipes
  • improved venting procedures

Mechanical Debonder

  • ability to disable wafer sensor in recipes

DataStream™ Update 20191223

Application Versions:

Download DataStream Update - 20191223​
  • Firmware – 20191223140026
  • Diego – 20170426104043
  • Postal – 20160404142634
  • Web UI – 20190812115240
  • Manny – 20160404142354

What’s New:

– Prevents corruption of the USB storage file during power failure.

DataStream™ Update 201902

Application Versions:

Download DataStream Update - 201902​
  • Firmware – 20190212094814
  • Diego – 20170426104043
  • Postal – 20160404142634
  • Web UI – 20190218101847
  • Manny – 20160404142354

What’s New:

We update our software frequently to improve our equipment. We have fixed a few bugs, improved performance, and added new user settings.
