Cee® Bake Plates

Cost Effective Equipment precision bake plates feature track quality thermal accuracy, uniformity, and exceptional reliability.


Product Options

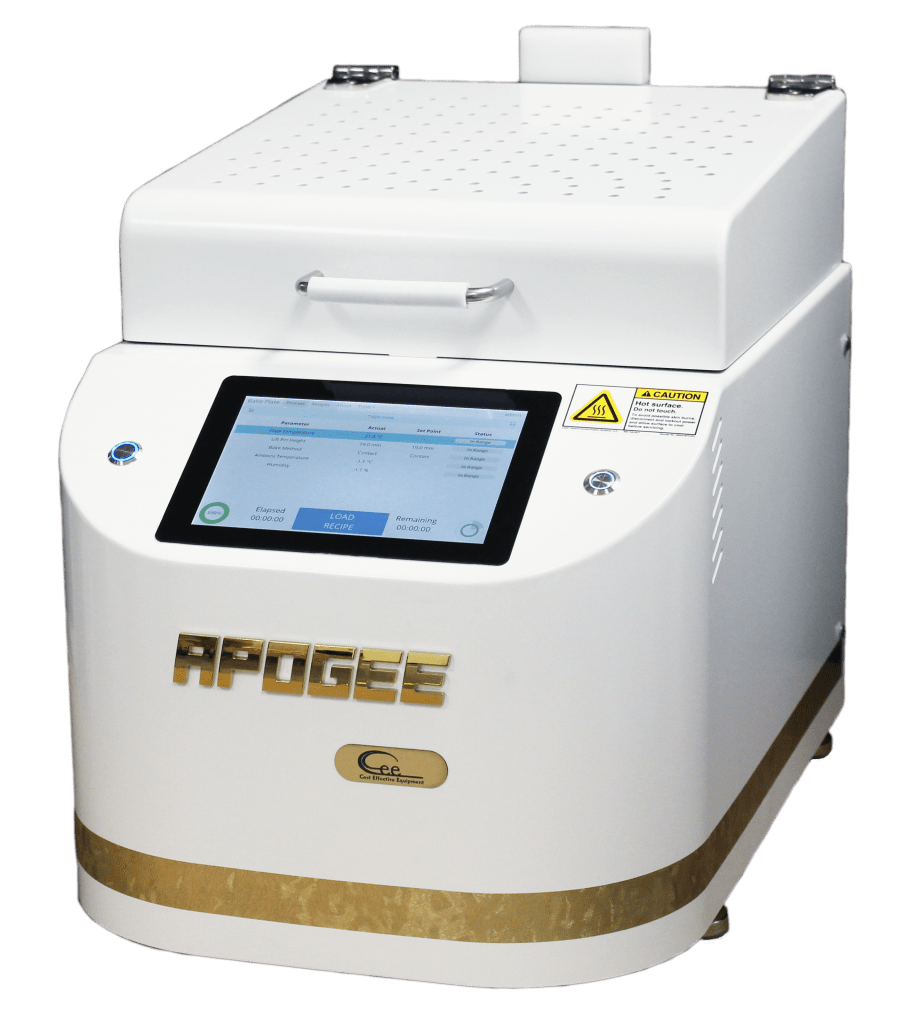

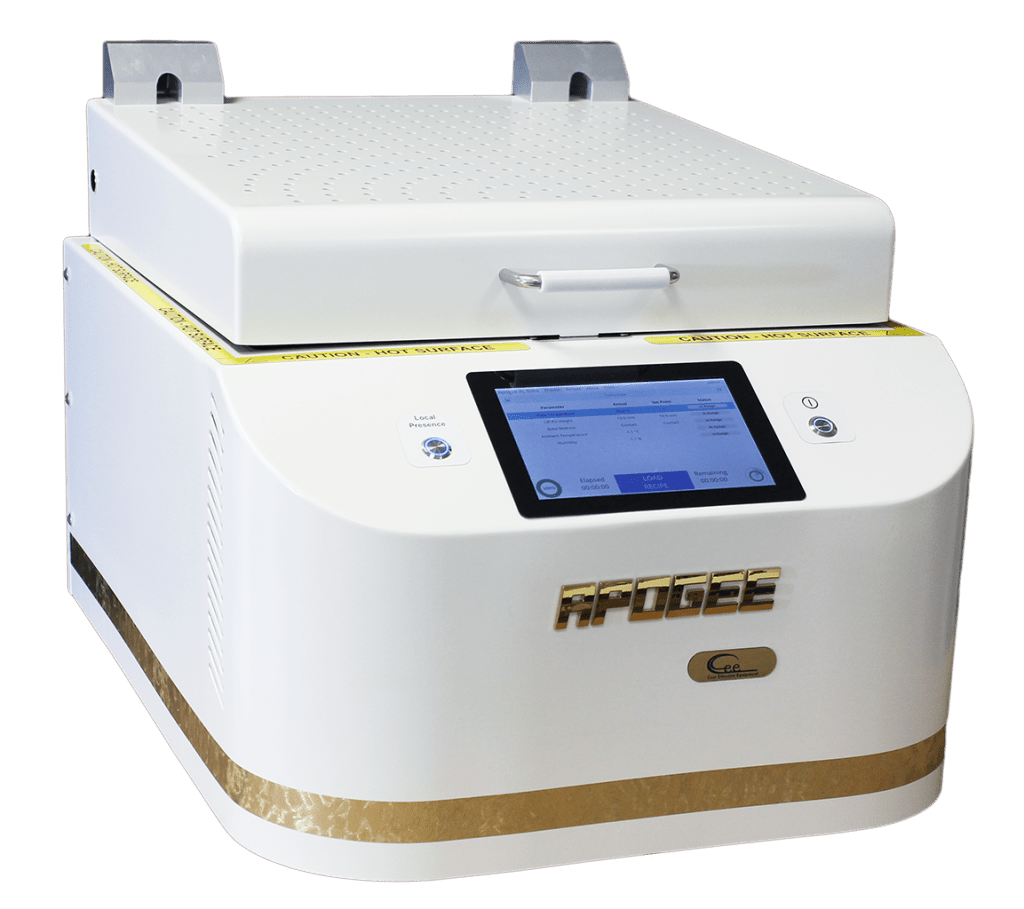

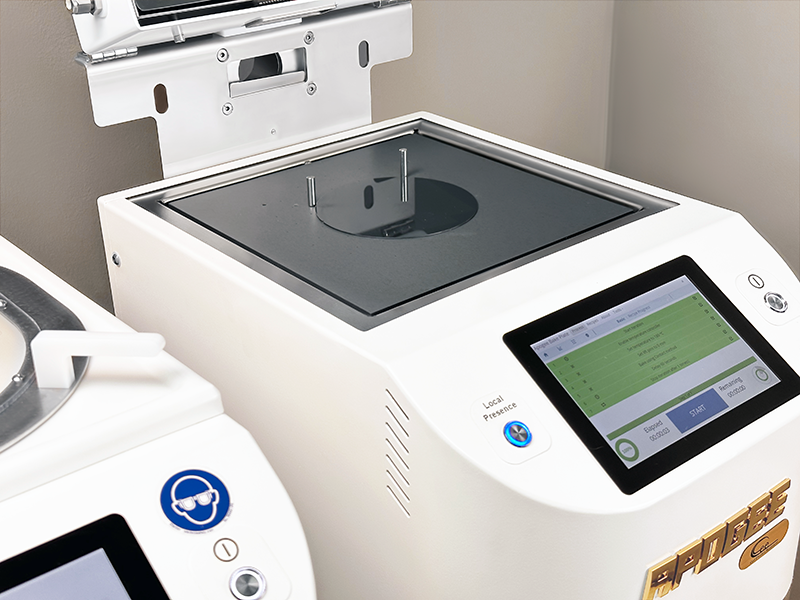

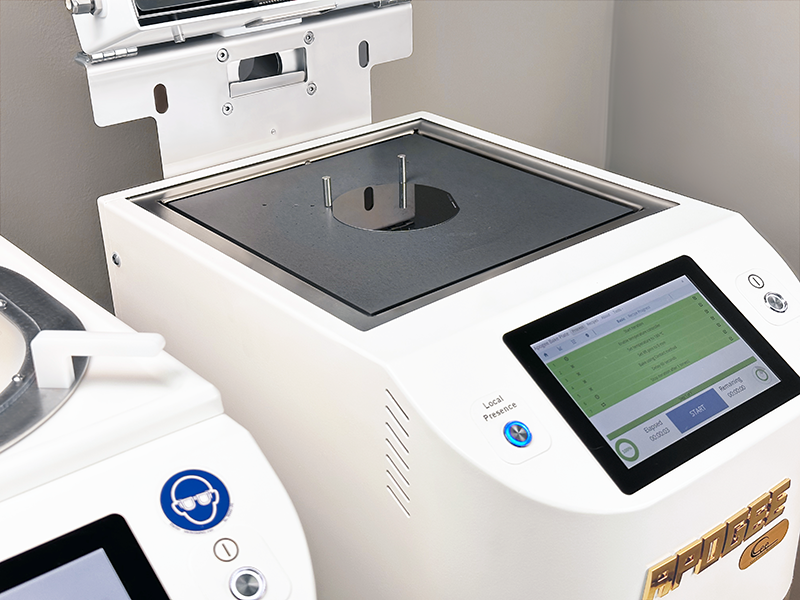

ApogeeBake Plate

with Datastream Technology

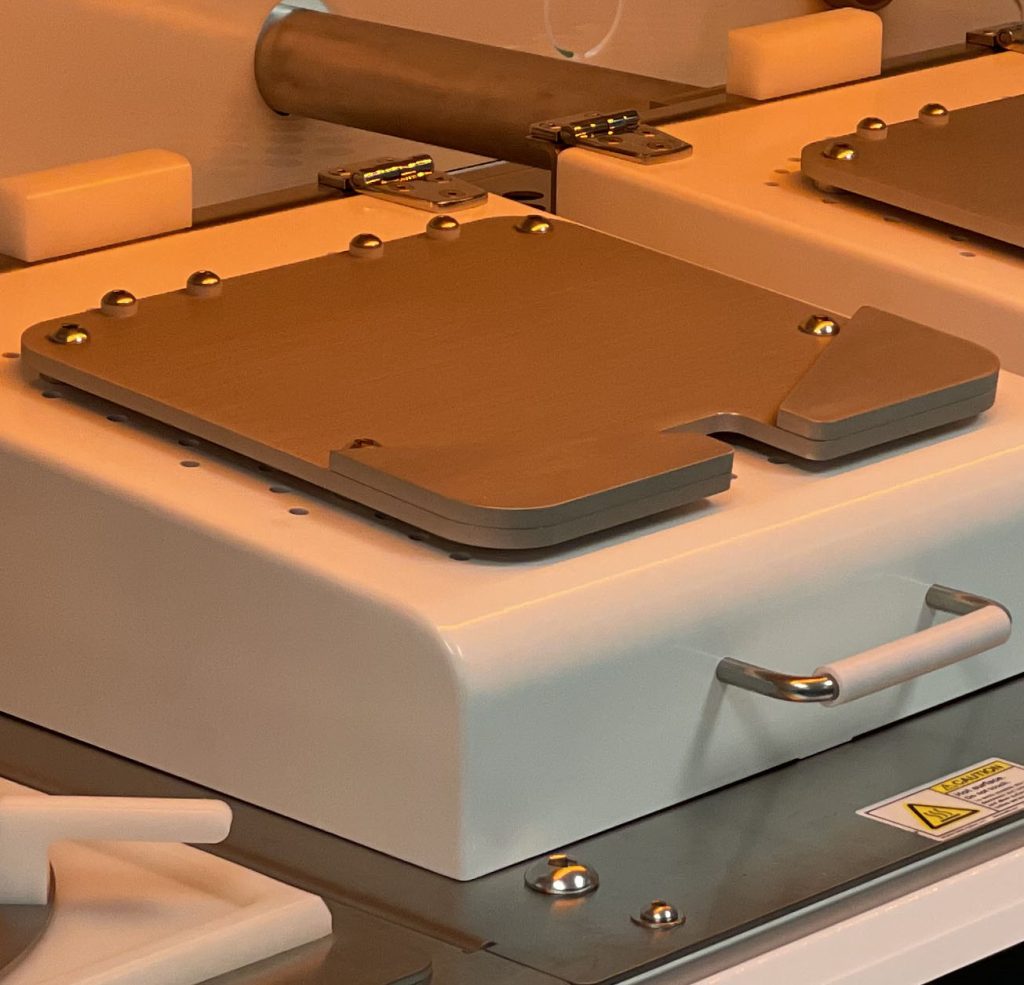

Model 10

Model 11

  Apogee® bake plate Cee® Model 10 bake plate Cee® Model 11 bake plate

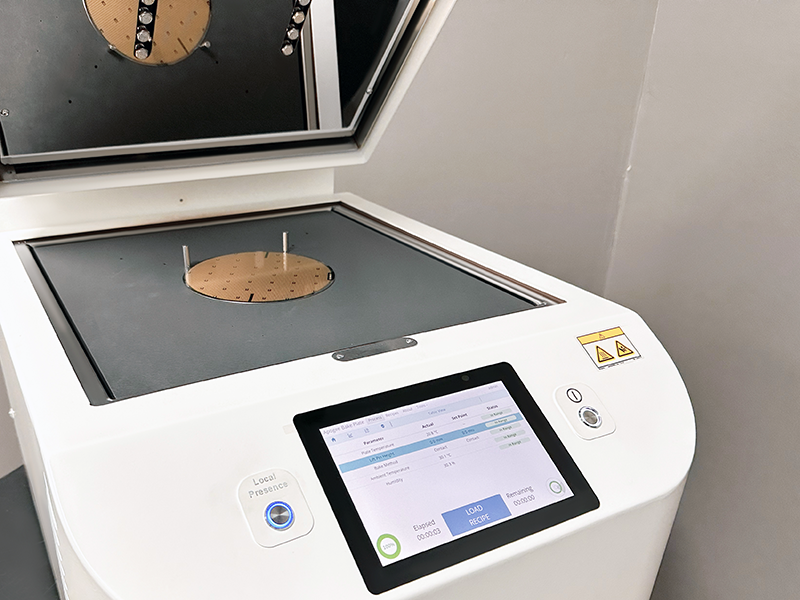

Substrate Sizes

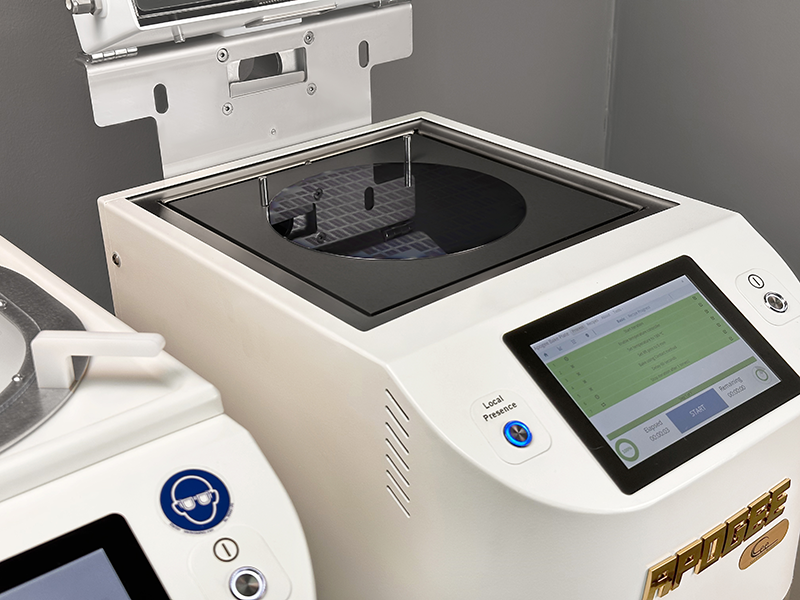

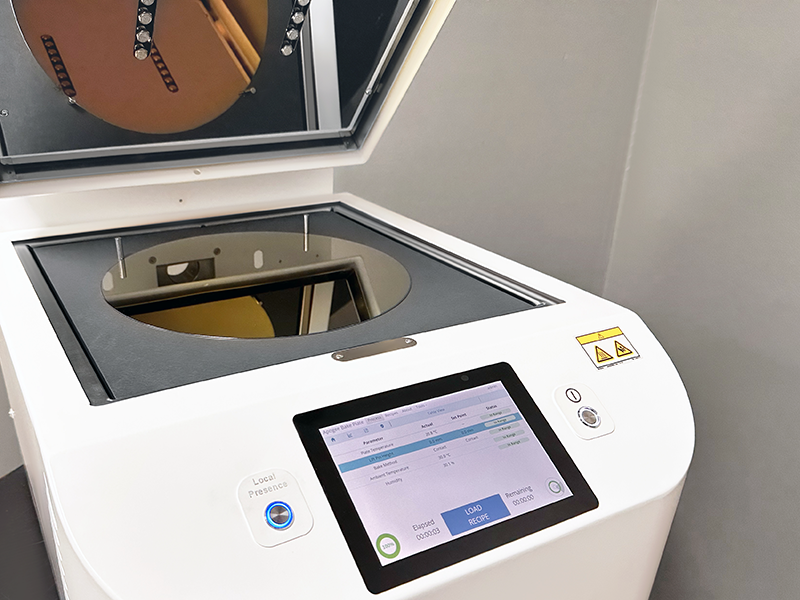

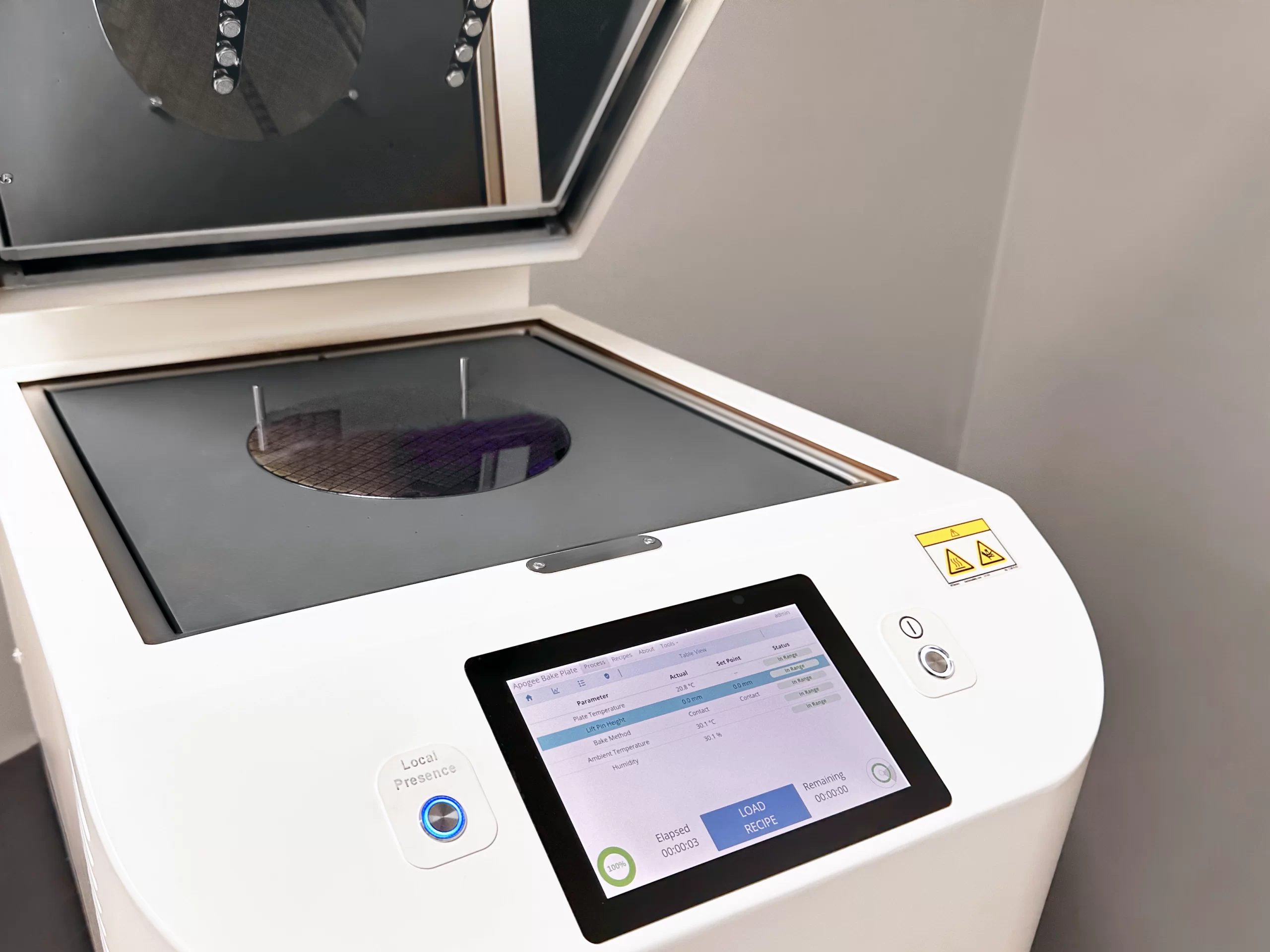

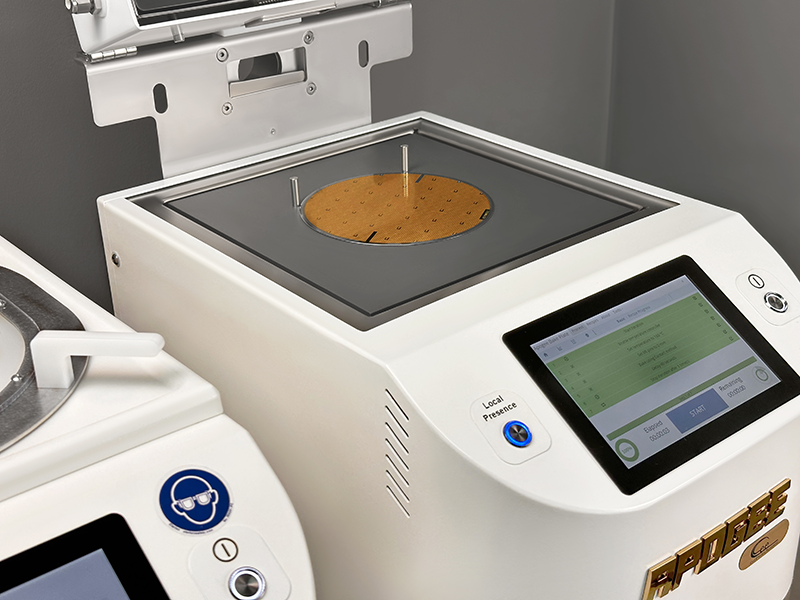

Up to 200 mm round or 8″ × 8″ square Up to 300 mm round or 14″ × 14″ square Up to 450 mm round or 20″ × 20″ square

Precision

Temperature Resolution
0.1°C 0.1°C 0.1°C
Temperature Range
Ambient to 300°C (400°C optional) Ambient to 300°C (400°C optional) Ambient to 300°C (400°C optional)

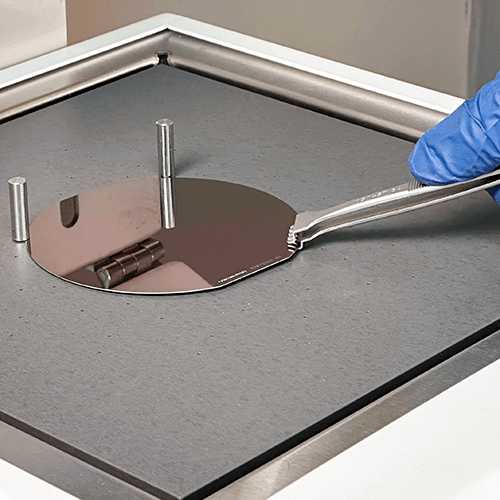

Temperature Uniformity
± 0.3% across working surface ± 0.3% across working surface ± 0.3% across working surface

Control

Control Interface

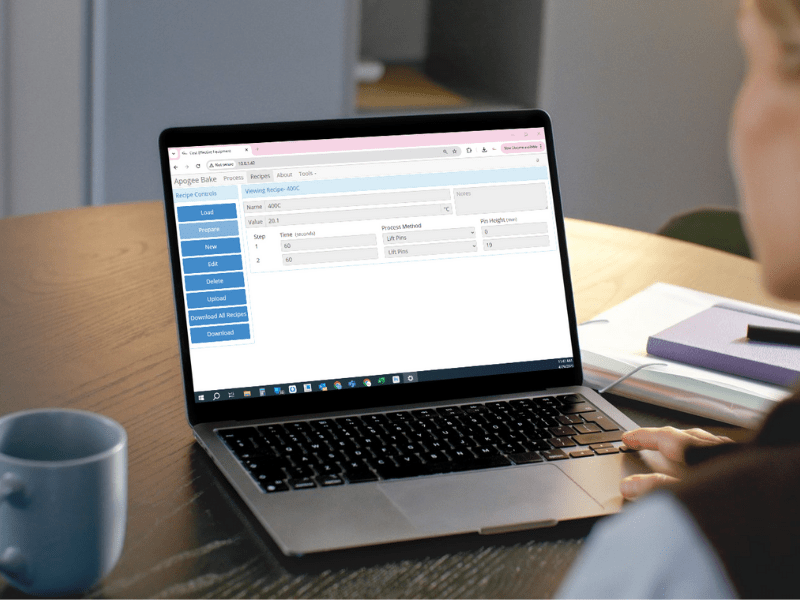

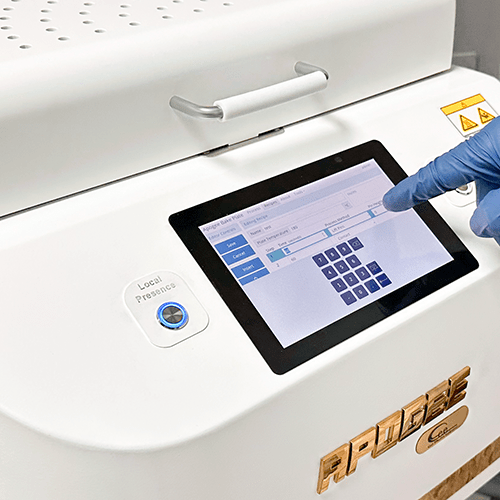

Datastream Technology Dual 4-digit alphanumeric LED display Dual 4-digit alphanumeric LED display

Programmability

Onboard Storage
Unlimited Bake Process programs Set bake methods Set bake methods
Step Time

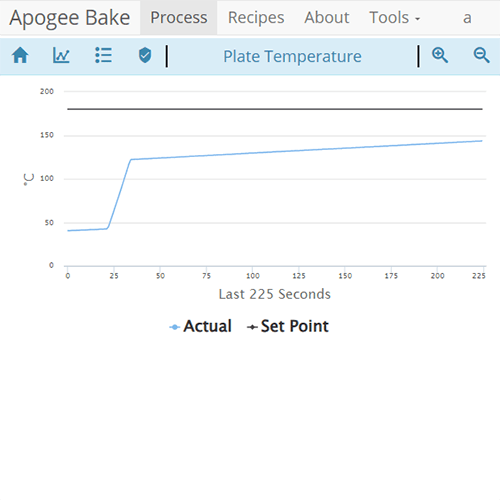

0.1 to 9,999.9 seconds with a resolution of 0.1 second Optional ramping capability (8 specific set points) Optional ramping capability (8 specific set points)
Security
Password protection available at no charge

Utilities

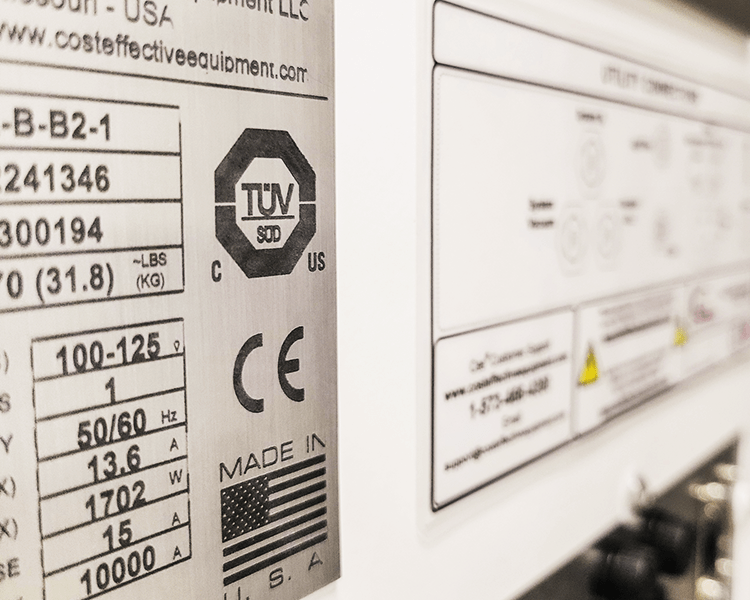

Voltage Ranges
100, 110-125, 208-240 VAC 208 to 240 volts AC, 3005-4005 watts 208 to 240 volts AC, 2351-3130 watts
Exhaust Port
1" OD 2-inch OD 2-inch OD

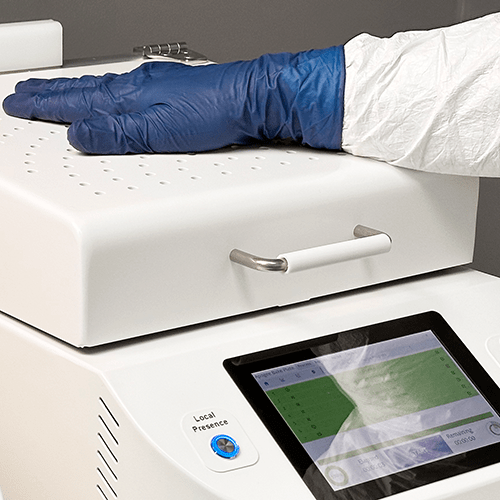

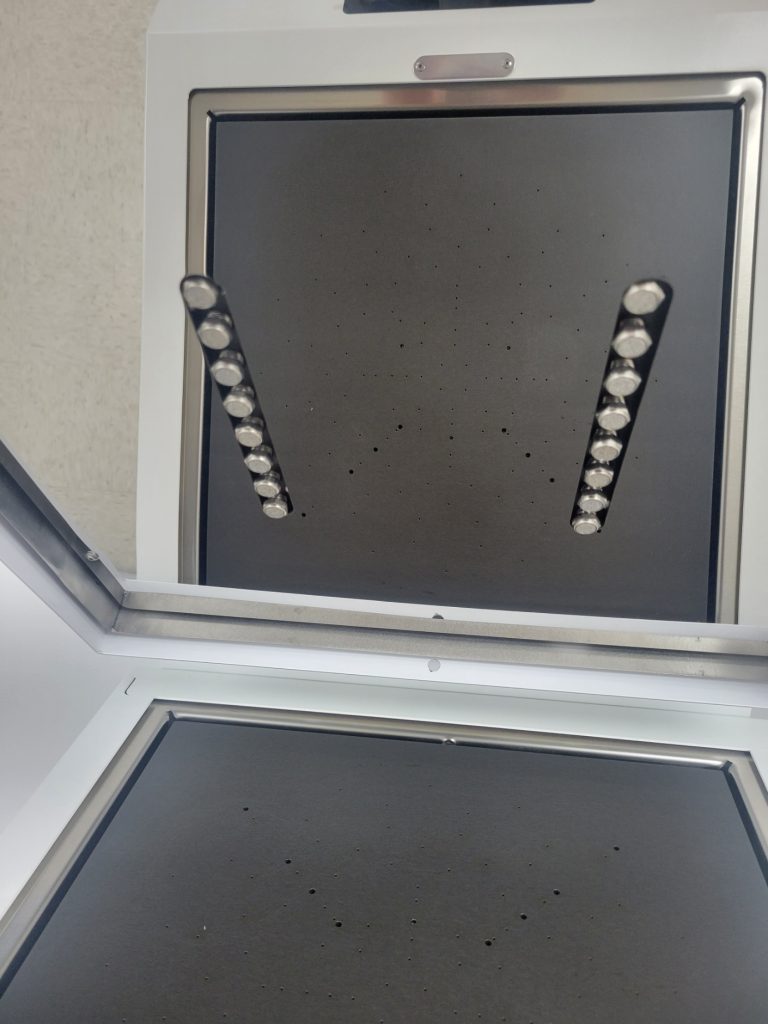

Exhaust Lid
5 to 10 cfm 10- to 30-cfm range 10- to 30-cfm range

Support

Warranty
1-year full warranty on parts and labor
Technical Support
Free remote technical support (phone, email) for the life of the product
Applications Support
Free applications and process assistance for the life of the product
