Spin Coat Theory

Spin Coat Theory

TL;DR Summary

Spin coating is a process used to apply thin films onto a substrate, typically involving depositing a small puddle of a fluid material on the center of the substrate and spinning it at high speed. The final thickness of the film depends on the properties of the fluid and the spin process parameters. The speed and acceleration of the spin process can greatly affect the uniformity and thickness of the coated film, while fume exhaust is also crucial in determining coated film properties. The repeatability of the process is important, as minor variations in the process can cause drastic variations in the coated film.

Spin Coating Overview

Spin coating has been used for several decades as a method for applying thin films. A typical process involves depositing a small puddle of a fluid material onto the center of a substrate and then spinning the substrate at high speed. Centripetal acceleration will cause the resin to spread across the substrate, leaving a thin film of material. Final film thickness will depend on the fluid material properties (viscosity, drying rate, percent solids, surface tension, etc.) and the spin process parameters (rotation speed, acceleration, and fume exhaust).  One of the most important factors in spin coating is repeatability, as subtle variations in the parameters that define a spin-coating process can result in drastic variations in the coated film.

Spin Coating Process Description

A typical spin process consists of a dispense step in which the resin fluid is deposited onto the substrate surface, a high speed spin step to thin the fluid, and a drying step to eliminate excess solvents from the resulting film. Two common methods of dispense are Static dispense, and Dynamic dispense.

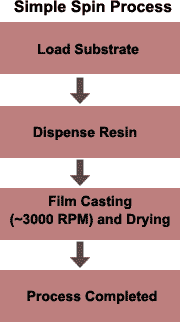

Spin coat process flow: load substrate, dispense resin, film cast and dry, process complete

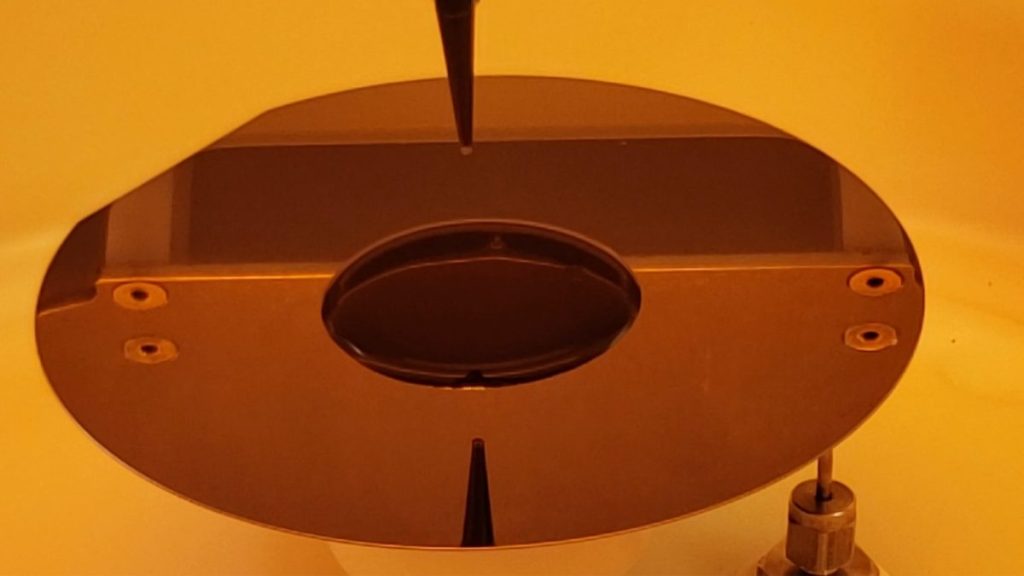

Static dispense is simply depositing a small puddle of fluid on or near the center of the substrate. This can range from 1 to 10 cc depending on the viscosity of the fluid and the size of the substrate to be coated. Higher viscosity and or larger substrates typically require a larger puddle to ensure full coverage of the substrate during the high speed spin step. Dynamic dispense is the process of dispensing while the substrate is turning at low speed. A speed of about 500 rpm is commonly used during this step of the process. This serves

to spread the fluid over the substrate and can result in less waste of resin material since it is usually not necessary to deposit as much to wet the entire surface of the substrate. This is a particularly advantageous method when the fluid or substrate itself has poor wetting abilities and can eliminate voids that may otherwise form.

After the dispense step, it is common to accelerate to a relatively high speed to thin the fluid to near its final desired thickness. Typical spin speeds for this step range from 1500-6000 rpm, depending on the properties of the fluid as well as the substrate. This step can take from 10 seconds to several minutes. The combination of spin speed and time selected for this step will generally define the final film thickness. In general, higher spin speeds and longer spin times create thinner films.

A separate drying step is sometimes added after the high-speed spin step to further dry the film without substantially thinning it. This can be advantageous for thick films since long drying times may be necessary to increase the physical stability of the film before handling. Without the drying step problems can occur during handling, such as pouring off the side of the substrate when removing it from the spin bowl. A moderate spin speed will aid in drying the film without significantly changing the film thickness.

Spin Speed

Spin speed is one of the most important factors in spin coating. The speed (rpm) affects the degree of centrifugal force applied to the resin and the turbulence of the air immediately above it. Relatively minor speed variations at this stage can result in large thickness changes. Film thickness is largely a balance between the force applied to shear the fluid resin towards the edge of the substrate and the drying rate of the resin. As the

Wafer spinning centrifugal force

resin dries, the viscosity increases until the radial force of the spin process can no longer move the resin over the surface. At this point, the film thickness will not decrease significantly with increased spin time. All Cee® spin coating systems are specified to be repeatable to within ±0.2 rpm at all speeds.

Acceleration

In addition to spin speed, acceleration can also affect the coated film properties. Since the resin begins to dry during the first part of the spin cycle, it is important to accurately control acceleration. In some processes, 50% of the solvents in the resin will be lost to evaporation in the first few seconds of the process.

Acceleration also plays a large role in the coat properties of patterned substrates. In many cases the substrate will retain topographical features from previous processes; it is therefore important

Spin coat ramp rate. Acceleration greatly effects the coating uniformity.

to uniformly coat the resin over and through these features. While the spin process in general provides a radial (outward) force to the resin, the acceleration aids in the dispersal of the resin around topography that might otherwise shadow portions of the substrate from the fluid. Cee® spinners is programmable with a maximum acceleration of 30,000 rpm/second (unloaded).

Fume Exhaust

The drying rate of the resin is defined by the properties of the fluid, as well as by the air surrounding the substrate during the spin process. It is well known that such factors as air temperature and humidity play a large role in determining coated film properties. It is also very important that the airflow and associated turbulence above the substrate itself be minimized, or at least held constant, during the spin process.

All Cee® spin coaters employ a “closed bowl” design. While not actually an airtight environment, the exhaust lid allows only minimal exhaust during the spin process. Combined with the bottom exhaust port located beneath the spin chuck, the exhaust lid becomes part of a system to minimize unwanted random turbulence.

Solvent rich spin bowl with no exhaust.

The distinct advantage to this system is slow drying of the fluid resin. The slower rate of drying offers the advantage of increased film thickness uniformity across the substrates. The fluid dries out as it moves toward the edge of the substrate during the spin process. This can lead to radial thickness non-uniformities since the fluid viscosity changes with distance from the center of the substrate. By slowing the rate of drying, it is possible for the viscosity to remain more constant across the substrate.

Spin coater bowl being exhausted to allow coating to dry

Drying rate and hence final film thickness is also affected by ambient humidity. Variations of only a few percent relative humidity can result in large changes in film thickness. By spinning in a closed bowl the vapors of the solvents in the resin itself are retained in the bowl environment and tend to overshadow the affects of

minor humidity variations. At the end of the spin process, when the lid is lifted to remove the substrate, full exhaust is maintained to contain and remove solvent vapors.

Another advantage to this “closed bowl” design is the reduced susceptibility to variations in air flow around the spinning substrate. In a typical clean room, for instance, there is a constant downward flow of air at about 100 feet per minute (30m/min). Various factors affect the local properties of this air flow. Turbulence and eddy currents are common results of this high degree of air flow. Minor changes in the nature of the environment can create drastic alteration in the downward flow of air. By closing the bowl with a smooth lid surface, variations and turbulence caused by the presence of operators and other equipment are eliminated from the spin process.

Process Trend Charts

These charts represent general trends for the various process parameters. For most resin materials the final film thickness will be inversely proportional to the spin speed and spin time. Final thickness will also be somewhat proportional to the exhaust volume although uniformity will suffer if the exhaust flow is too high since turbulence will cause non uniform drying of the film during the spin process.

Spin coating film thickness versus spin speed
Film thickness versus spin time
Exhaust volume versus film thickness uniformity
Exhaust volume versus film thickness

Spin Coating Process Troubleshooting

As explained previously, there are several major factors affecting the coating process. Among these are spin speed, acceleration, spin time and exhaust. Process parameters vary greatly for different resin materials and substrates so there are no fixed rules for spin coat processing, only general guidelines. Following is a list of issues to consider for specific process problems.

Film too Thin

Film too Thick

Poor Reproducibility

Poor Film Quality

Root Cause for Common Defects
