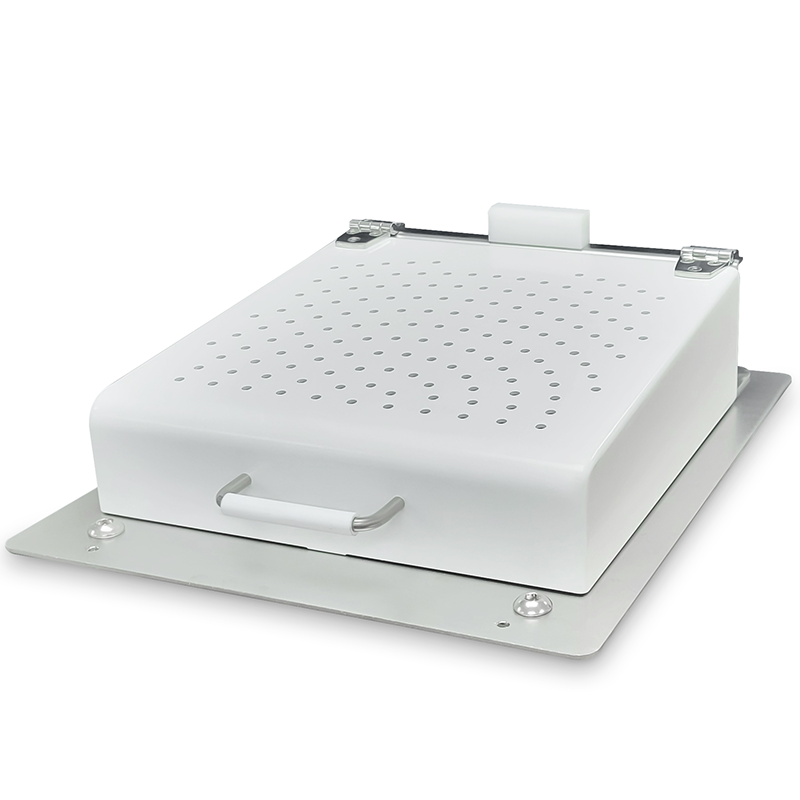

Effortlessly integrate into your wet bench, fume hood, or glove box. The Apogee® Flange-Mount Bake Plate is designed for seamless installation, offering top-notch performance and easy setup.
Need a wet bench or glove box solution? Reach out for expert recommendations from our trusted partners.

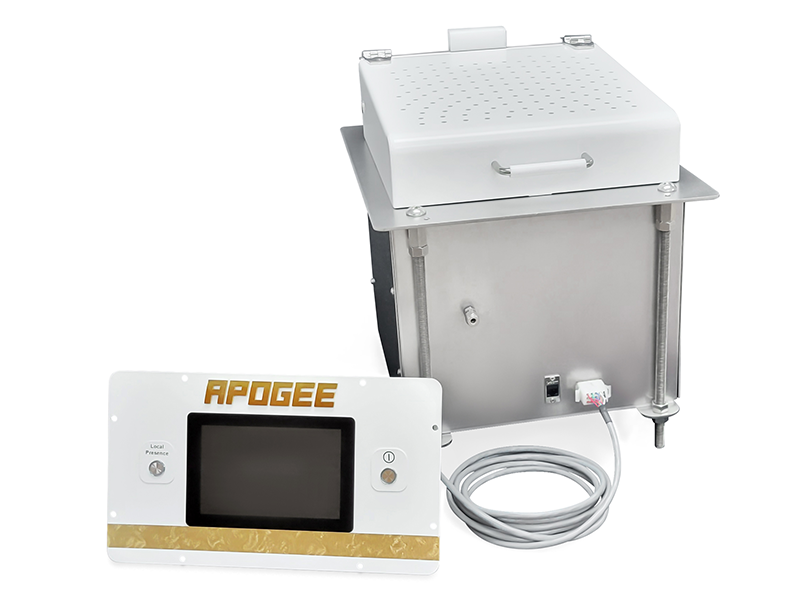

Optimize your workspace for both comfort and convenience. Mount the 7-inch touchscreen panel up to 15 feet from the main unit for unparalleled ergonomics. Whether your space is large or small, enjoy seamless control and comfort throughout your process.

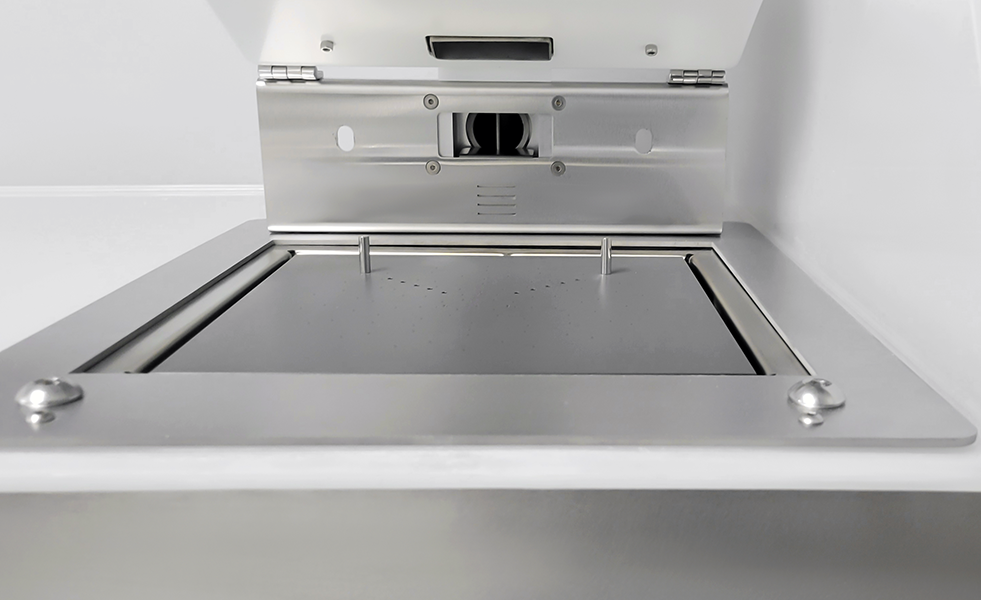

Optimize your workspace with the sleek, flush-mount design. By concealing essential hardware beneath the surface, the Apogee® Flange-Mount Bake Plate offers an unobstructed view of your operations, creating a clean and organized environment.
Enjoy unrivaled repeatability and uniformity in every bake process. Built for long-lasting durability and backed by lifetime process support, Apogee® Bake Plates are your ideal solution for automated bake processing.
Engineered for superior performance, usability, versatility—and peace of mind.
On-board 7-inch color touchscreen with DataStream™ OS included for visibility and your ease-of-use.
Adjustable wafer stops for precise centering of various substrate sizes, round or square, for maximum versatility.
Featuring type III military-grade hardcoat anodized surface—ultra-flat, extremely scratch-resistant, and built to last.
Smart Pin™ Technology and precision ramping controls enable multi-stage baking and gentle warm-up for delicate, thermally sensitive substrates.
Recipe-controlled baking: with vacuum, gas-proximity, gravity contact, or Smart Pin™ Technology, you get complete process control.
Knowledge is power. With DataStream™ technology, monitor and manage in real time, ensuring production-quality results from anywhere. Proactive warnings and detailed log files give you the information you need to succeed.
Process parameters and measurements are logged in real-time. Export in multiple formats for analysis, troubleshooting, and process optimization.
Access your Apogee® Bake Plate remotely via any web browser for real-time monitoring, adjustments, and recipe management. Create, modify, upload, download, and archive recipes seamlessly.
NRTL certification is crucial for semiconductor equipment, ensuring compliance with safety standards set by regulatory bodies like OSHA and ANSI.
Cee® bake plates are NRTL listed right out of the box…
…your safety department is going to love you.
When advanced processes require advanced features, Cee® has you covered. Personalize your bake plate right from the factory.
Bake process sensitive to oxidation? Shield your wafer with a blanket of nitrogen or other inert gas with the N2 Purge option.
Crank up the heat! Upgrade your Apogee® Bake Plate to allow for processes that demand a high temperature bake.
Busy workbench? Give your wafer a dedicated cool-down spot. Bring fresh baked wafers to room temperature in seconds with the optional Chill Station.
200mm Round or 8″ x 8″ Square
2 inch Round (smaller sizes supported with limited functionality)
300°C (400°C optional)
0.1°C
±0.3% across working area
7″ Full Color Touchscreen (included)
0-19 mm
Unlimited / Unlimited
0.1 mm
0.1 s
65 lb (29.5kg)
110 lb (50kg)
W: 15″ (381mm)
D: 18.5″ (470mm)
H: 5.5″ (140mm)
W: 28″ (712mm)
D: 28″ (712mm)
H: 29″ (737mm)
100-120 or 208-230 VAC
1/4″ Push to Connect, 35psi (241kPa)
13.6A (@100V); 6.3A (@208V)
1/4″ Push to Connect, <20″ Hg (33kPa abs)
2″ OD, 0.4” H2O@10CFM (100Pa@17 CMH)
W: 13.25″ (337mm) W
D: 21″ (533mm) D
H: 13.25″ (337mm) H
With four decades of experience, our experts will collaborate closely with you to understand your requirements and deliver solutions that exceed expectations.
