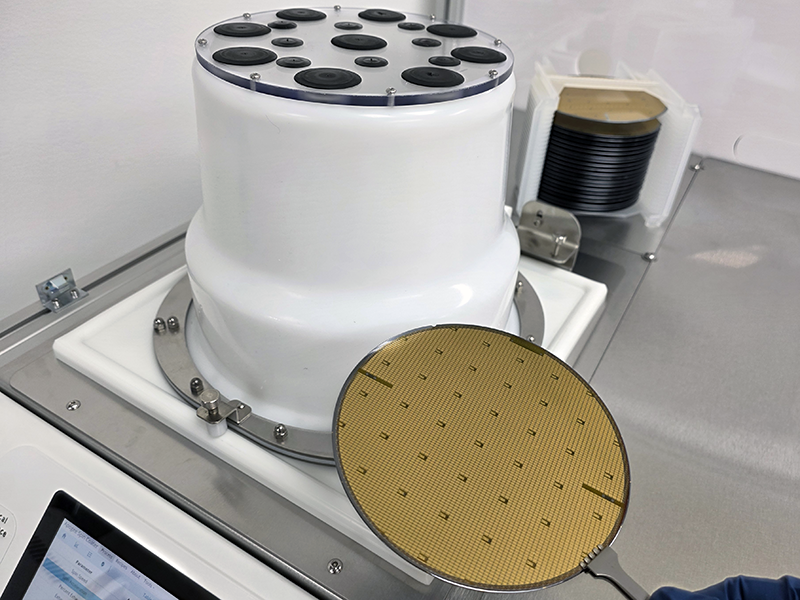

Experience the Apogee® Spin Developer as an all-in-one solution, tailored to your process needs. Integrated into our modular workstation, it can easily pair with other process modules for added flexibility. Enjoy seamless factory-direct integration for a streamlined workflow.
Whether you need a single tool or ten, fume control or a cleanroom environment, the Cee® X-Pro II Workstation is the perfect alternative to typical wet benches.

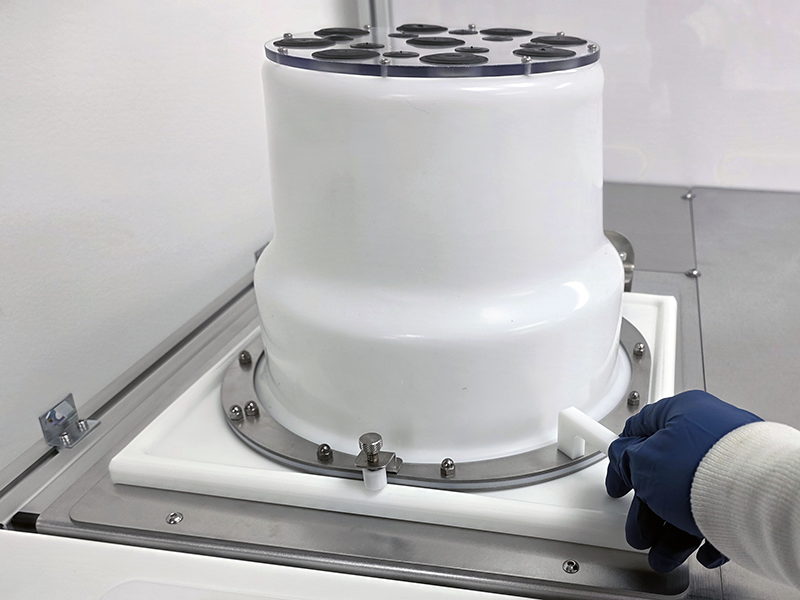

Imagine a tidy, efficient environment where you can focus on what really matters. The Apogee® Spin Developer’s sleek, flush-mount design keeps critical hardware hidden under the deck, maximizing your workspace and offering a clear view of operations.
Apogee® Spin Developers provide flexibility, repeatability, and long-lasting durability for the most challenging applications. Rely on cutting-edge technology and top-tier process support to drive your success at every stage.
Engineered for superior performance, usability, versatility—and peace of mind.
On-board 7-inch color touchscreen with DataStream™ OS included for visibility and your ease-of-use.
Integrated splash ring prevents droplets from redepositing onto the wafer for a contamination-free surface and defect-free results.
A brushless motor and indirect drive with oversized bearings/belt provide unmatched uptime, thermal isolation, and performance.
The built-in spindle fluid deflector keeps liquids out of your drive train and bearings, without purge gases.
Integrated PFA fluid trap protects your vacuum components and pumps from unwanted contamination and blockage.
Sophisticated fluid separator evacuates chemical fumes while safely guiding fluid waste to the drain.
Knowledge is power. With DataStream™ technology, monitor and manage in real time, ensuring production-quality results from anywhere. Proactive warnings and detailed log files give you the information you need to succeed.
Process parameters and measurements are logged in real-time. Export in multiple formats for analysis, troubleshooting, and process optimization.
Access your Apogee® Spin Developer remotely via any web browser for real-time monitoring, adjustments, and recipe management. Create, modify, upload, download, and archive recipes seamlessly.
NRTL certification is crucial for semiconductor equipment, ensuring compliance with safety standards set by regulatory bodies like OSHA and ANSI.
Cee® spin developers are NRTL listed right out of the box…
…your safety department is going to love you.
When advanced processes require advanced features, Cee® has you covered. Personalize your spin coater right from the factory.
Discover a whole new level of control with AccuScan™ Dispense; a programmable scanning arm offering precision dispense and edge bead removal.
Got incompatible materials? Divert, isolate, and route waste through multiple paths. Switch mid-process with recipe-controlled functionality.
Challenge accepted! Any size, shape, material, or design, Cee® tailored spin chucks are expertly matched to your substrates.
200mm Round or 6″ x 6″ Square
12,000 rpm
30,000 rpm/s
< 0.2 rpm
< 0.2 rpm/s
< 0.2 rpm
7″ Full Color Touchscreen (included)
Unlimited / Unlimited
0.1 s
40 lb (18.2kg) – Add X-Pro II Workstation for Final Weight
85 lb (38.6kg) – Add X-Pro II Workstation for Final Shipping Weight
N/A (Pre-Installed Into X-Pro II Workstation)
N/A (Pre-Installed Into X-Pro II Workstation)
208-230 VAC (Supplied by X-Pro II Workstation)
3/4″ OD
6A (max) (Supplied by X-Pro II Workstation)
1″ OD, 0.4″ H2O@5.8CFM (100Pa@10CMH)
1/4″ Push to Connect, <20″ Hg 33kPa abs (Supplied by X-Pro II Workstation)
70psi (482kPa) (Supplied by X-Pro II Workstation)
With four decades of experience, our experts will collaborate closely with you to understand your requirements and deliver solutions that exceed expectations.
